Grass Valley / Tektronix Performer

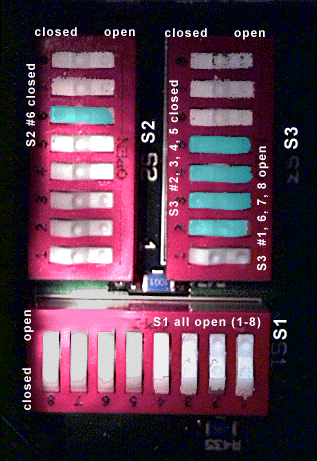

Dip switch settings
(blue shaded switches are CLOSED, white are OPEN)
Front >>> of unit
Dip Switch S1 (Performer Address)
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
O |
O |
O |
O |
O |
O |
O |
O |
O = Open, C = Closed
Dip Switch S2 (Protocol: Performer
ASCII)
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
O |
O |
O |
O |
O |
C |
O |
O |
O = Open, C = Closed
Dip Switch S3 (8 Data bits, 38.4K
baud, Odd parity)
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
O |
C |
C |
C |
C |
O |
O |
O |
O = Open, C = Closed
(for 9600 baud, S3 switch #3 = Open)
