DPE-500 Series Physical Specifications
DPE CHASSIS
|
|
English (inches) |
Metric (cm) |
|
Height: |
3.5 |
8.9 |
|
Width: |
17.0 |
22.0 |
|
Depth: |
22.0 |
55.8 |
|
|
K6 Keyboard: Industry standard QWERTY style, with color
coded keycaps, and multi-level keyboard macros. |
K2 KEYBOARD
|
|
English (inches) |
Metric (cm) |
|
Height: |
1.5 |
3.9 |
|
Width: |
21 |
53.3 |
|
Depth: |
9 |
22.8 |
|
|
J6 Jogger: Six function keys (macros), mark in/out, search
to in/out, increment single frame forward/reverse, var/jog/shuttle
toggle and device commands (play, stop, ff, rew, record) and
jog knob for jogging, variable and shuttle control. |
J6 JOGGER
|
|
English (inches) |
Metric (cm) |
|
Height: |
1.5 |
3.9 |
|
Width: |
6.5 |
16.5 |
|
Depth: |
8.5 |
22 |
VPE Series Physical Specifications
VPE CHASSIS
|
|
English (inches) |
Metric (cm) |
|
Height: |
3.5 |
8.9 |
|
Width: |
17.0 |
22.0 |
|
Depth: |
22.0 |
55.8 |
|
|
K2 Keyboard: Industry standard QWERTY style, with color
coded keycaps, and touch-sensitive jog knob on right side |
K2 KEYBOARD
|
|
English (inches) |
Metric (cm) |
|
Height: |
1.5 |
3.9 |
|
Width: |
20.25 |
51.55 |
|
Depth: |
8.5 |
21.6 |
|
|
K3 Keyboard: Dedicated keyboard style, with functional
key groupings and center jog knob. All alphabetical characters
are available on this keyboard; though for touch typing, an auxiliary
PC-style text keyboard may be connected to the K3 |
K3 KEYBOARD
|
|
English (inches) |
Metric (cm) |
|
Height: |
1.5 |
3.9 |
|
Width: |
20.25 |
51.55 |
|
Depth: |
8.5 |
21.6 |
|
|

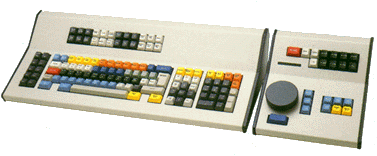

K5 Style Keyboard and Jogger for VPE-351 High-end
keyboard with separate jogger control panel has many additional
function keys and supports additional macros. |
K5 KEYBOARD
|
|
English (inches) |
Metric (cm) |
|
Height: |
4.0 |
10.2 |
|
Width: |
21.75 |
55.2 |
|
Depth: |
9.4 |
23.9 |
K5 JOGGER
|
|
English (inches) |
Metric (cm) |
|
Height: |
4.0 |
10.2 |
|
Width: |
8.0 |
20.3 |
|
Depth: |
9.4 |
23.9 |
|
|
|
